Database Design

Database designs provide the blueprints of how the data is going to be stored in a system.

Database design is a vital component of any app, and it determines what data to be stored and how the different data elements interact. A proper database affects the overall performance of an application. We're using a Firebase Database for our app. We prefer Firebase over SQLite since this is a multi-user app and FireBase is preferred over SQLite for Multi-User Apps.

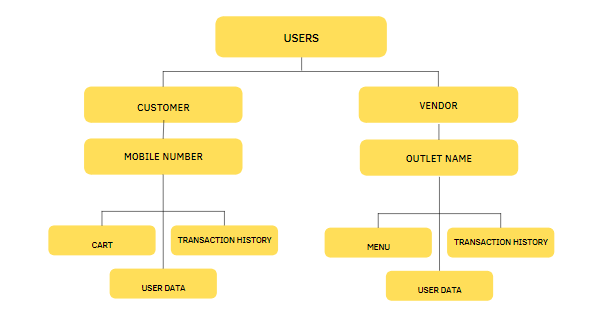

Google Firebase is Google-backed application development software that allows developers to develop Android, IOS, and Web apps. It can be used for user authentication and to host a real-time database. The database design for our app is given below.

The root node of our Database is Users, which branches into two children i.e. Customer and Vendor.

We store all the information corresponding to the customer using the Customer's Mobile Number as the Key, and for vendor, we store all the information using the OutletName as the key.

Under the Customer subtree, it has three children, namely, Cart, UserData, and the TransactionHistory.

1) Cart

The Cart will store the list of items in the cart of the customer. Every child in the cart will have four children, namely

Name of the Item
Price of the Item
URL of the picture
Quantity of the item

We access this node when we want to display the list of items in the cart. When the user placed the order all the items in the cart are deleted.

2) User_Data

Under this, we store all the information pertaining to the user. This child is common for both Customers and Vendors. Every child in the User Data will have four children, namely

Email
Password
PhoneNumber
Username (Name of the Customer / Outlet Name)

We access this node during Login and Registration and also for displaying the Customer Profile.

3) Transaction_History_Customer

Under this we store information regarding all the orders placed by the customer. Every child in this node will have

Amount of the Transaction
The outlet from which they purchased
Transaction ID

We access this node to display the Transaction History of the Customer

4) Menu

Under this node, we store the menus of the individual outlets. Every child in this node will have

Name of the item
Price of the item
URL of the item

We access this node to display the menu to the vendor and also to the customer.

5) Transaction_History_Vendor

Under this we store information regarding all the orders received by the outlet. Every child in this node will have

Amount of the Transaction
Phone Number of the customer
Transaction ID

We access this node to display the Transaction History of the Vendor
